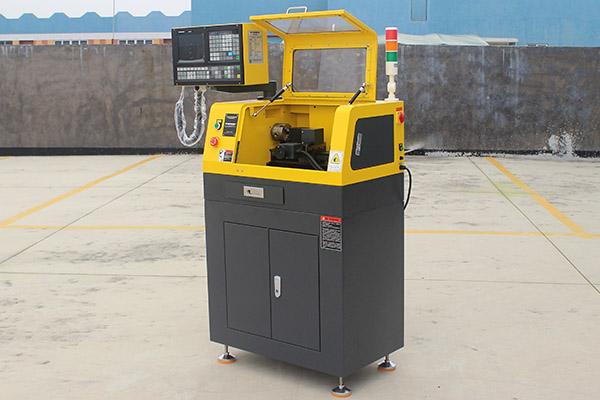

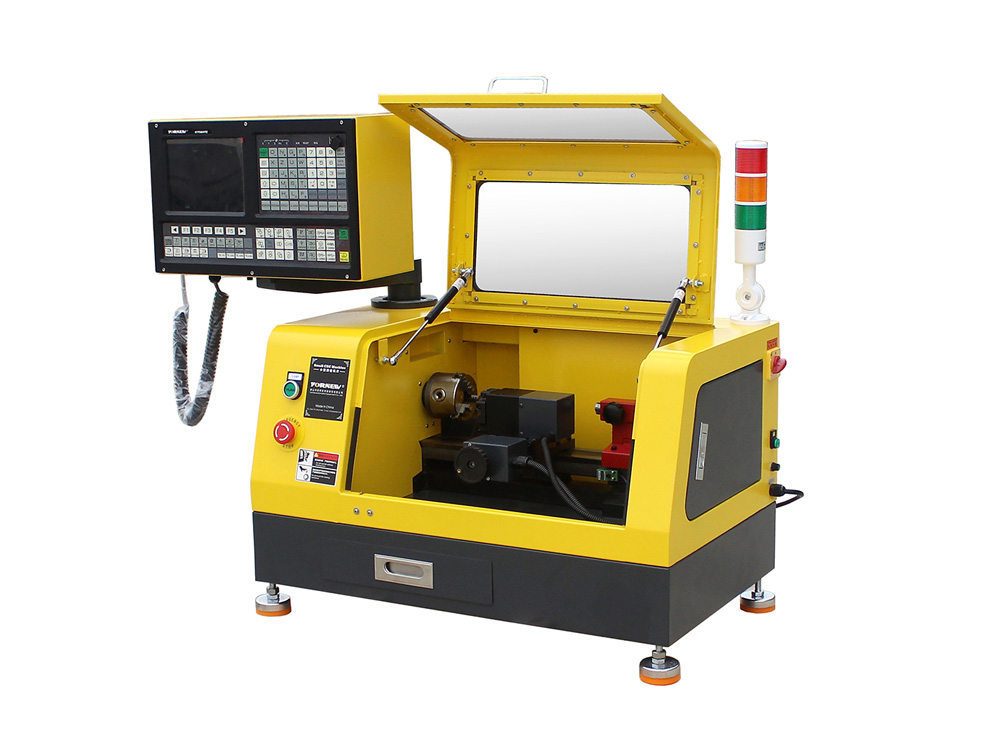

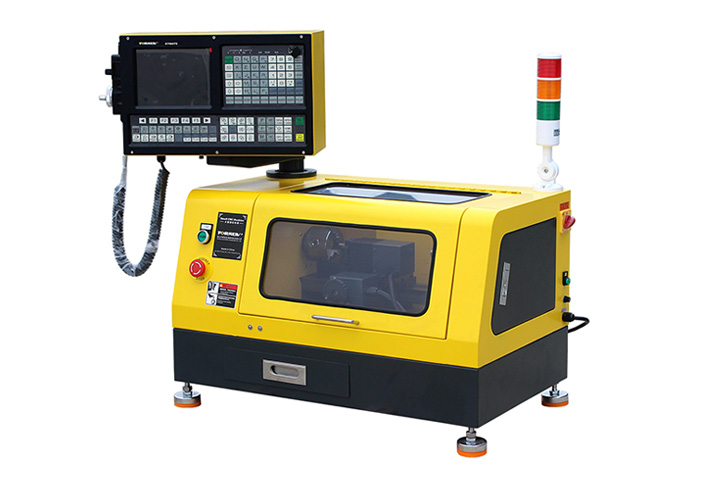

CK140 Benchtop CNC Lathe OF Video
CK140 Benchtop CNC Lathe OF Video

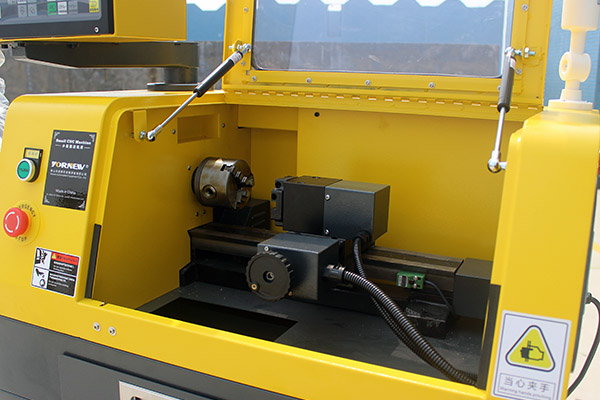

(1).Automatic 4 positions tool post.
(2).KY 980Tc Turning CNC System
(3). ARM 9 CPU+FPGA,Support B macro function,PLC function,Mutil-language library function.
(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(5). The standard spec includes MPG hand wheel.
(6). USB and RS232 port, DNC function of USB.
(7). Control speed of G code.
(8). Selection of high -quality casting materials,more compact.
(9). A collection of double-nut ball screw, bearings and couplings with high precision positioning.
(10). 220VAC or 110VAC single-phase AC power supply.
(11). Safety electrical components of high quality.
(12). Auto power off when door open.

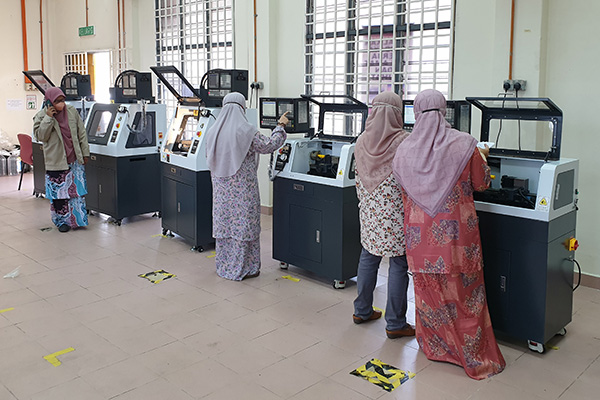

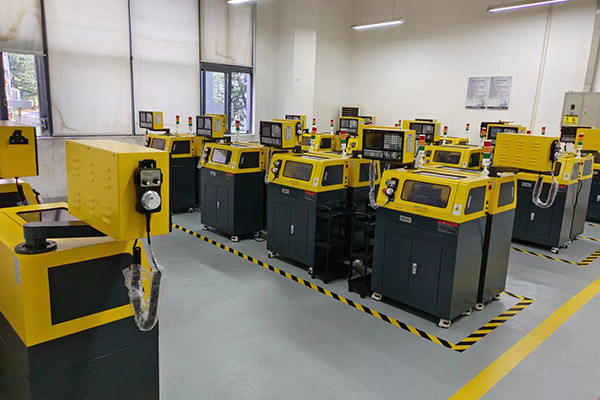

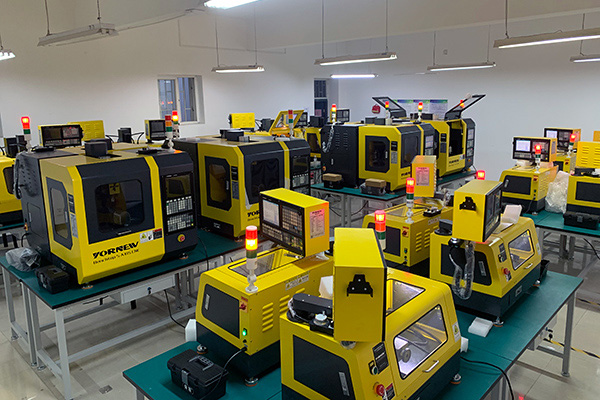

(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
| Technical parameters |
|
|---|---|
| Positioning accuracy | 0.02mm |
| Resolution | 0.01mm |
| Swing over bed | 140mm |
| Travel across slide | 75mm |
| Clamping Size | 1-60mm |
| Spindle speed | 300-2500rpm/min |
| Spindle through-hole | 10mm |
| Spindle mount | MT2 |
| Spindle motor power | 150W |
| X travel | 70mm |
| Z travel | 160mm |
| The max moving speed | 2000mm/min |
| The max feeding speed | 1000mm/min |
| Control system | KY 980Tc Turning CNC System |
| Automatic tool change system(ATC) | 4 Tools |
| Tool dimension | 8×8mm |
| Tailstock taper | MT1 |
| Tailstock sleeve diameter | 20mm |
| Travel of tailstock | 25mm |
| Power | 220VAC / 110VAC |
| Weight(NW/GW) | 80/100KG |

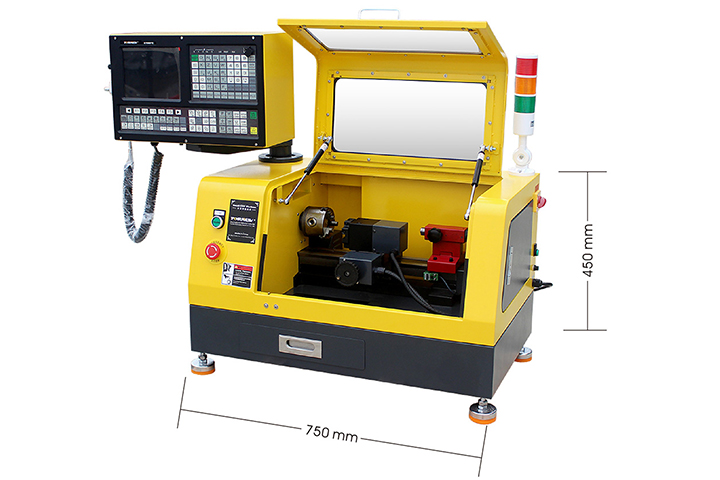

| Overall dimension | 750*450*850mm |
| Packing size | 850*560*950mm |
We Provide high performance manufacturing solutions at a price small manufacturers can afford.
