Technical parameters |
||||
Spindle type |
Unit |
Fmachinery |
High-speed |
|
Max Spindle Speed |
rpm |
6000 |
24000 |
|
Spindle Power |
Kw |
3.8 |
4.5 |
|
Spindle Taper |
|
BT30 |
||
Repeat positioning accuracy |
mm |
±0.01 |
||
XAxis Travel |
mm |
400 |
||
YAxis Travel |
mm |
500 |
||
Z Axis Travel |
mm |
200 |
||
Motor Power(X/Y) |
Kw |
0.75 AC Servo |
||
Motor Power(Z) |
Kw |
1.2 AC Servo |
||
Rapid feed rate(X/Y) |
mm/min |
35000 |
||
Rapid feed rate(Z) |
mm/min |
25000 |
||
Cutting feed rate |
mm/min |
10000 |
||
ATC tool number |
|
8 |
||
Pneumatic supply |
MPa |
0.5 |
||
Collet chuck |
|
ER25 |
||
Tool DIA. range |
mm |
1-16 |
||
Transmission |
|
Ball Screw |
||
Guide rail |
|
High-precision linear guide rail |
||
Table size |
mm |
400*500 |
||
Max. Load |
Kg |
200 |
||
Power supply |
|
3 phase 380V |
||
Weight |
kg |
2000/2100 |
||
Machine Size |
mm |
1400*1100*2000 |
||
Packing Size |
mm |
1500*1200*2100 |
||
Technical parameters |
||||
Spindle type |
Unit |
Fmachinery |
High-speed |
|
Max Spindle Speed |
rpm |
6000 |
24000 |
|
Spindle Power |
Kw |
3.8 |
4.5 |
|
Spindle Taper |
|
BT30 |
||
Repeat positioning accuracy |
mm |
±0.01 |
||
XAxis Travel |
mm |
400 |
||
YAxis Travel |
mm |
500 |
||
Z Axis Travel |
mm |
200 |
||
Motor Power(X/Y) |
Kw |
0.75 AC Servo |
||
Motor Power(Z) |
Kw |
1.2 AC Servo |
||
Rapid feed rate(X/Y) |
mm/min |
35000 |
||
Rapid feed rate(Z) |
mm/min |
25000 |
||
Cutting feed rate |
mm/min |
10000 |
||
ATC tool number |
|
8 |
||
Pneumatic supply |
MPa |
0.5 |
||
Collet chuck |
|
ER25 |
||
Tool DIA. range |
mm |
1-16 |
||
Transmission |
|
Ball Screw |
||
Guide rail |
|
High-precision linear guide rail |
||
Table size |
mm |
400*500 |
||
Max. Load |
Kg |
200 |
||
Power supply |
|
3 phase 380V |
||
Weight |
kg |
2000/2100 |
||
Machine Size |
mm |
1400*1100*2000 |
||
Packing Size |
mm |
1500*1200*2100 |
||

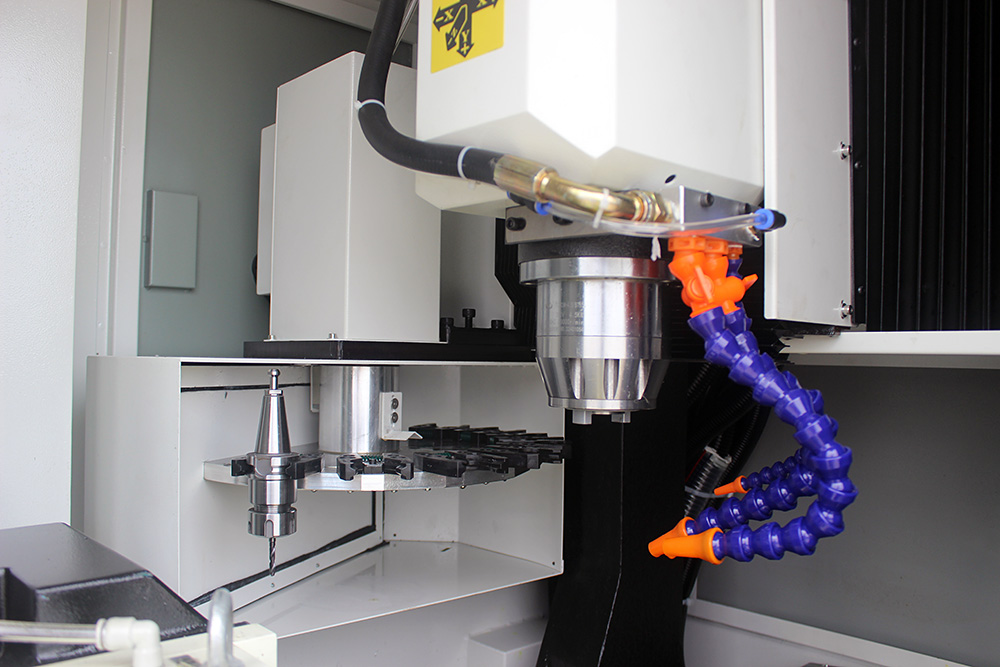

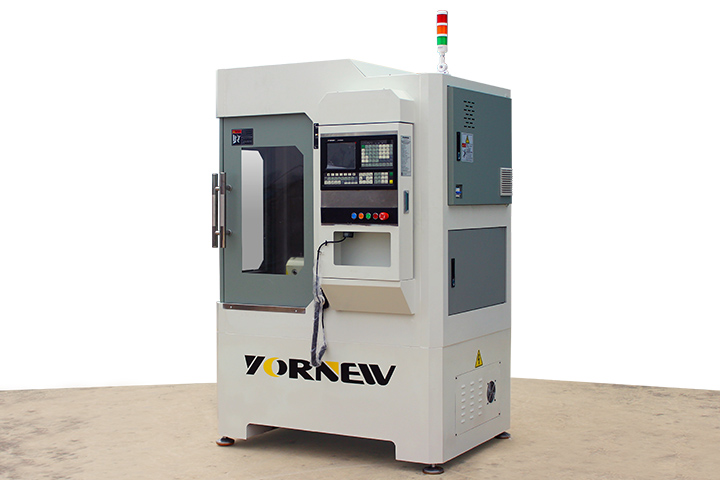

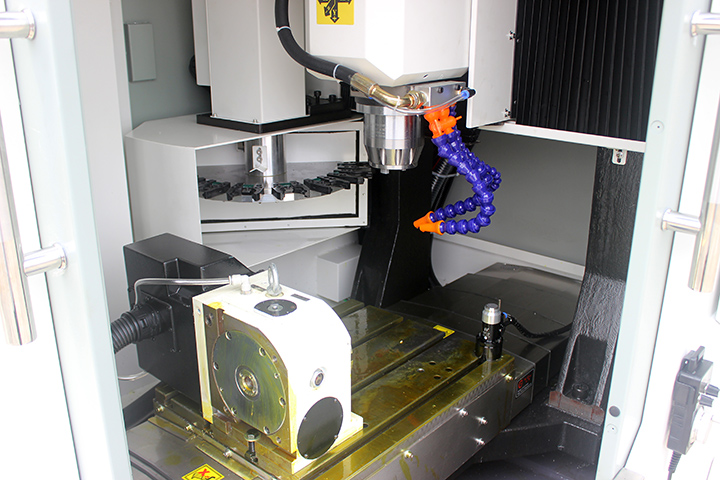

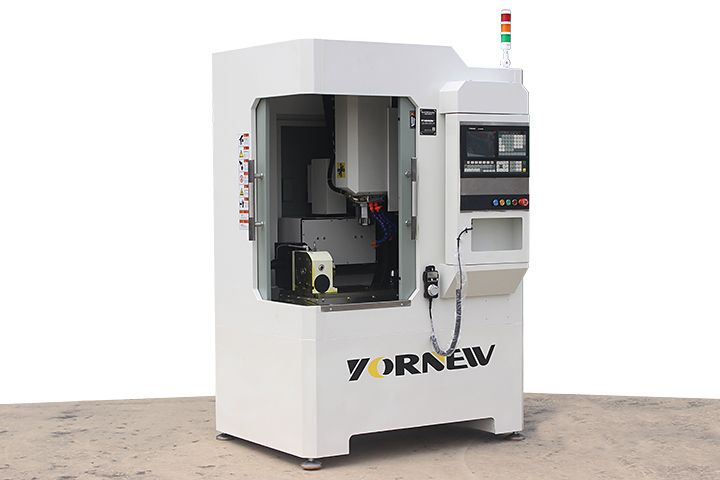

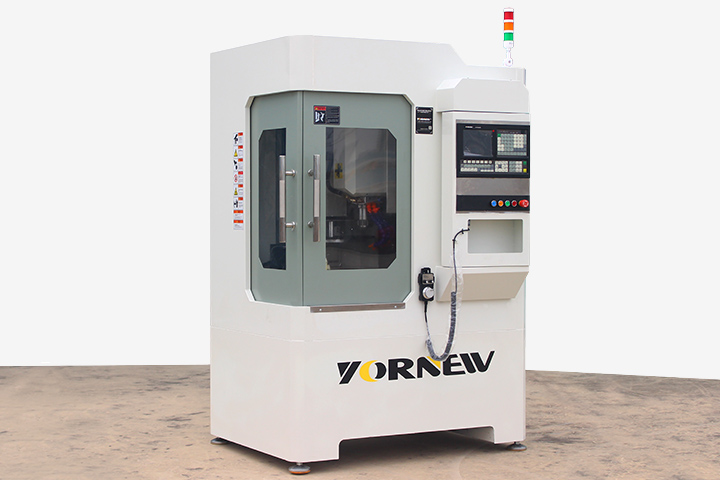

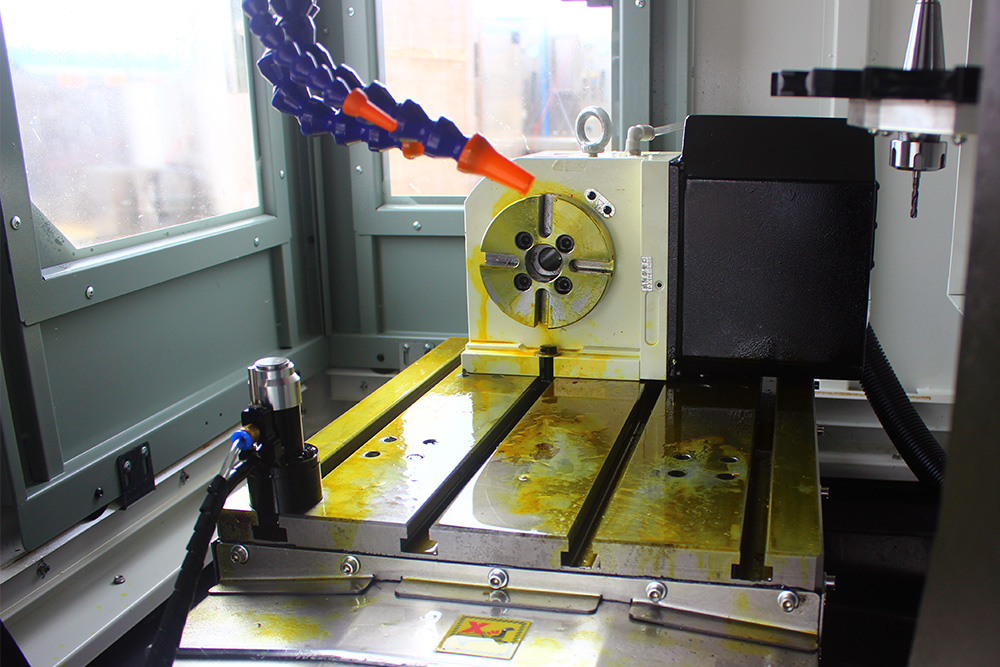

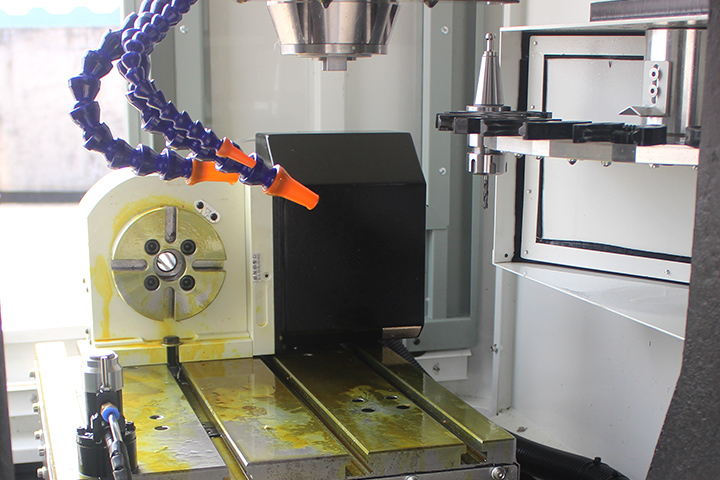

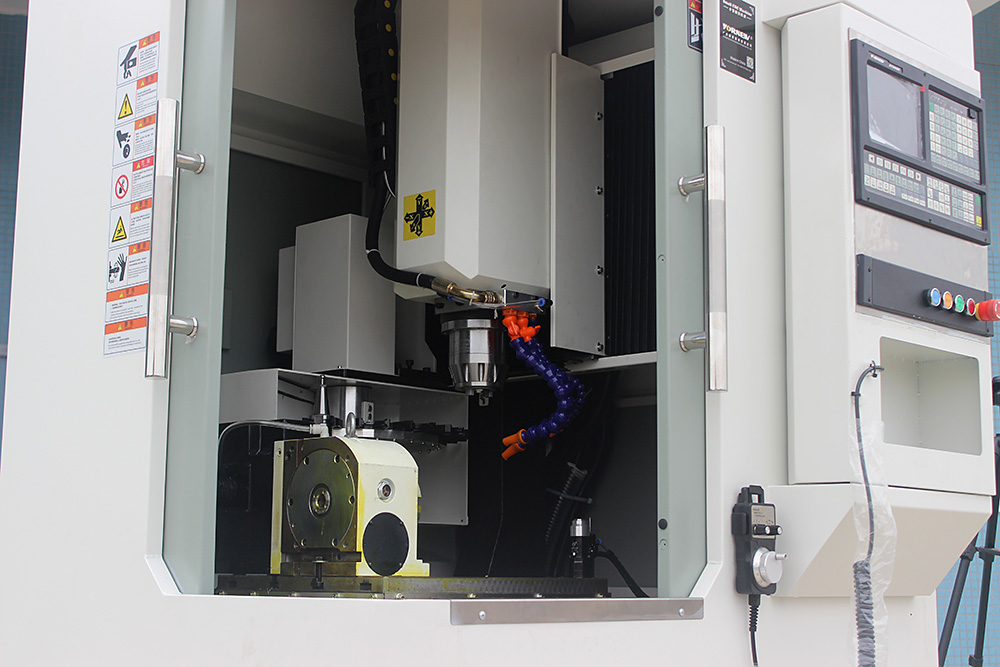

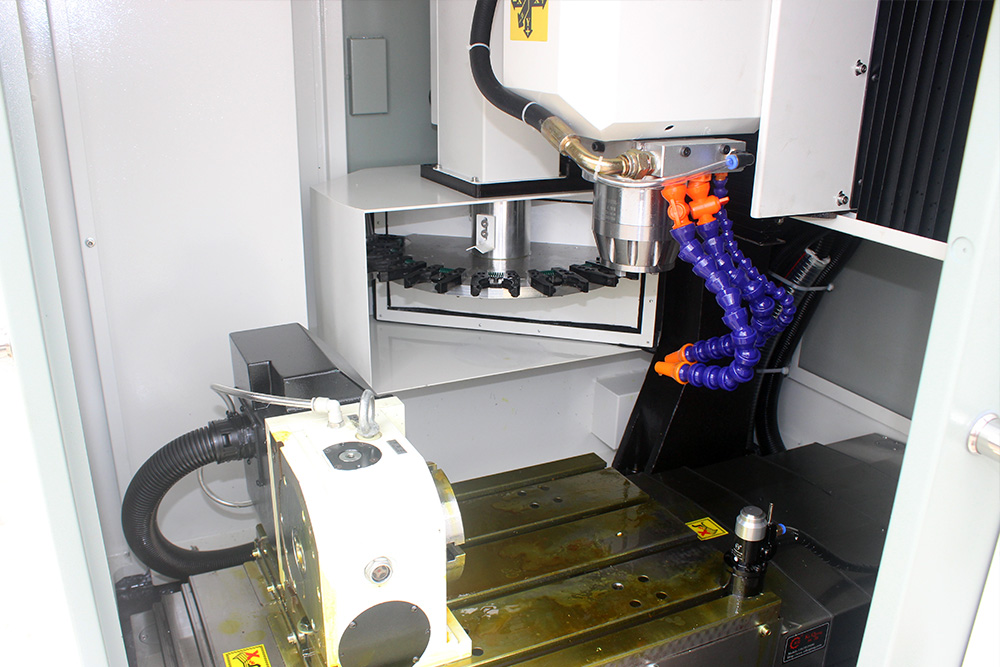

MX400 Small Drilling & Milling Center
MX400 Small Drilling & Milling Center
MX400 Small Drilling & Milling Center
MX400 Small Drilling & Milling Center
MX400 Small Drilling & Milling Center
MX400 Small Drilling & Milling Center
We Provide high performance manufacturing solutions at a price small manufacturers can afford.
