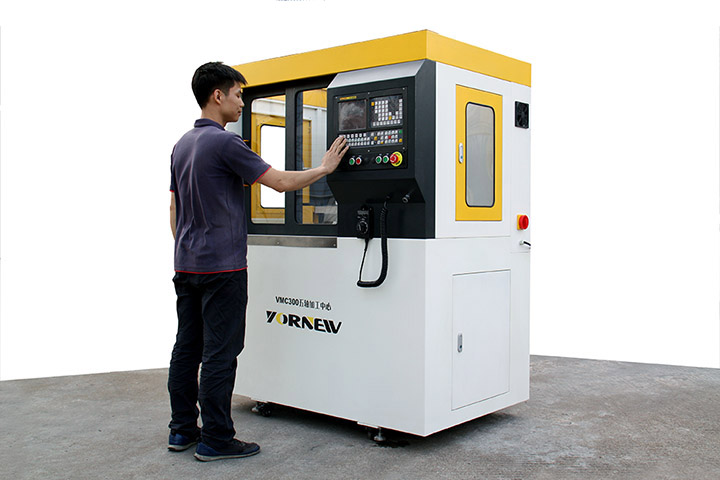

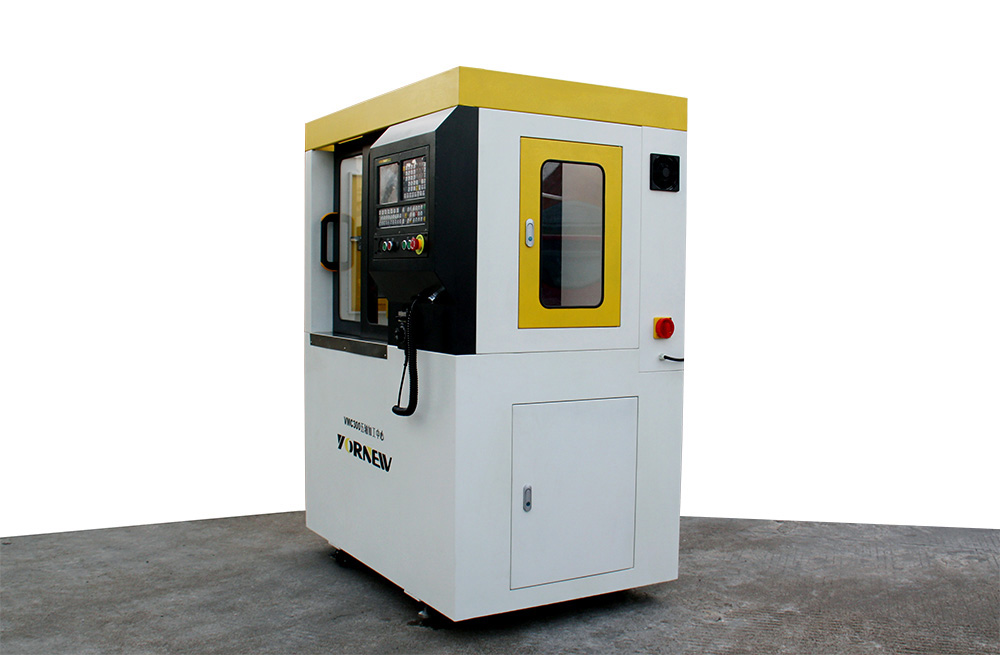

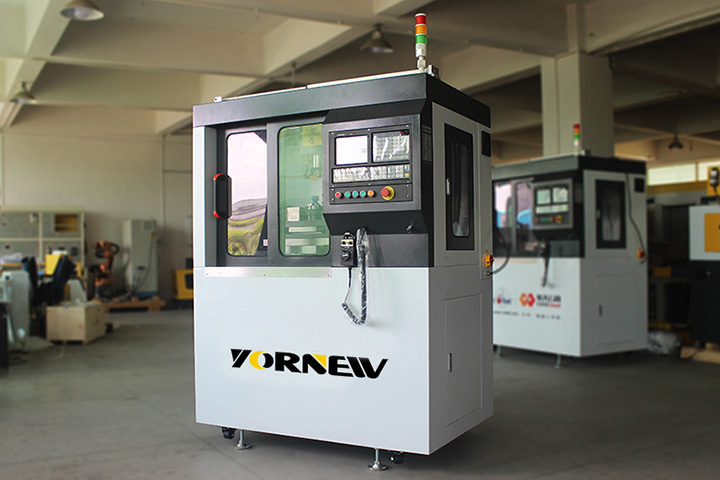

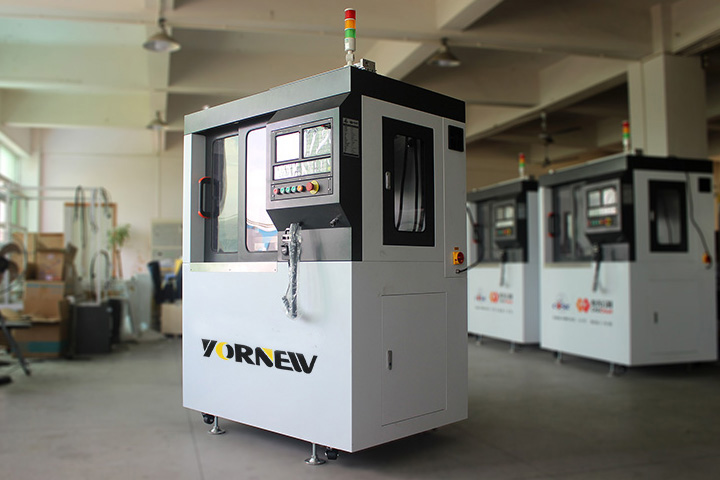

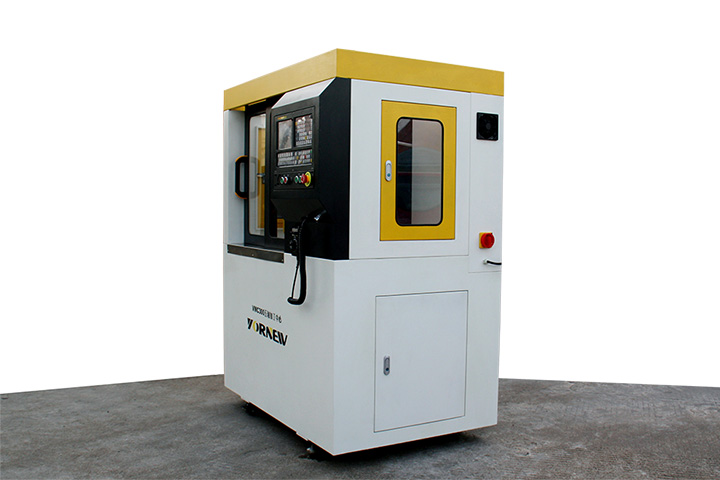

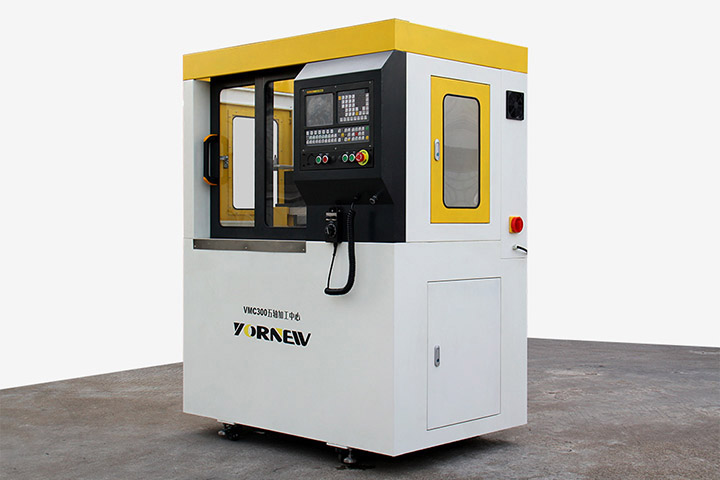

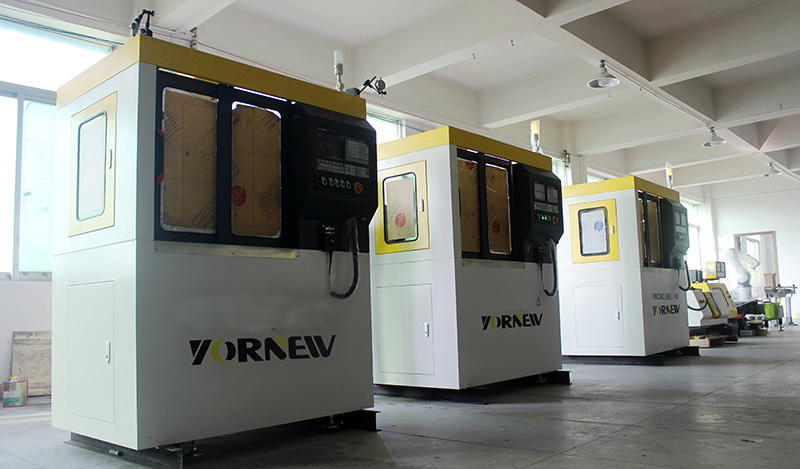

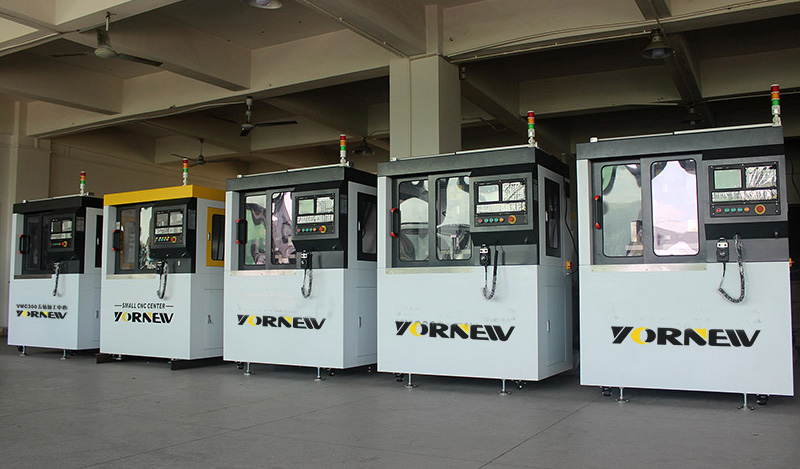

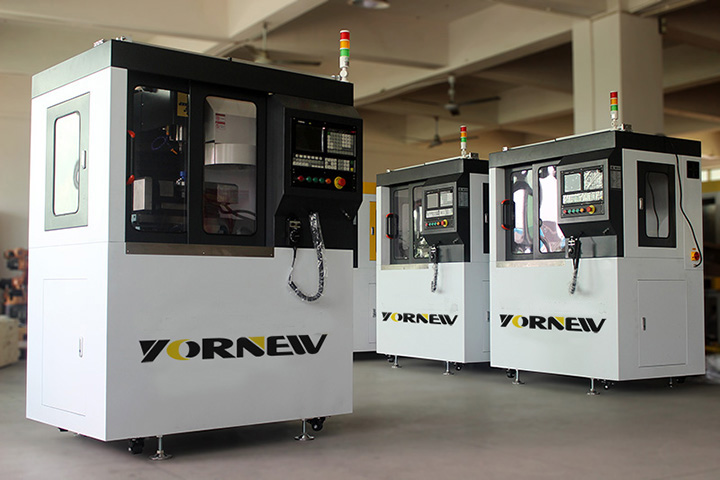

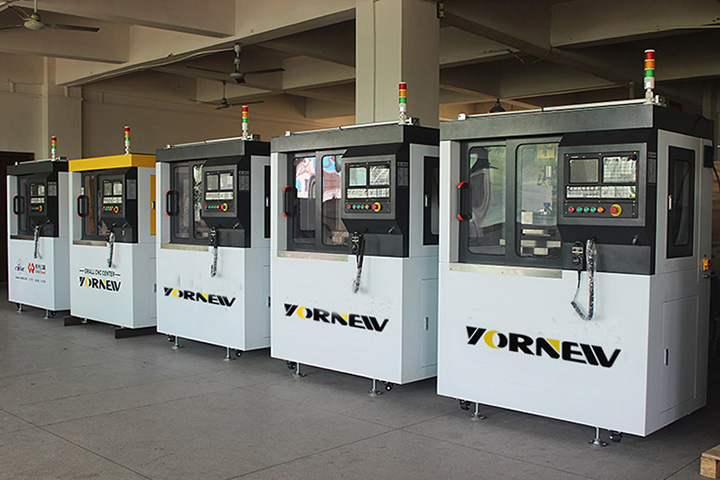

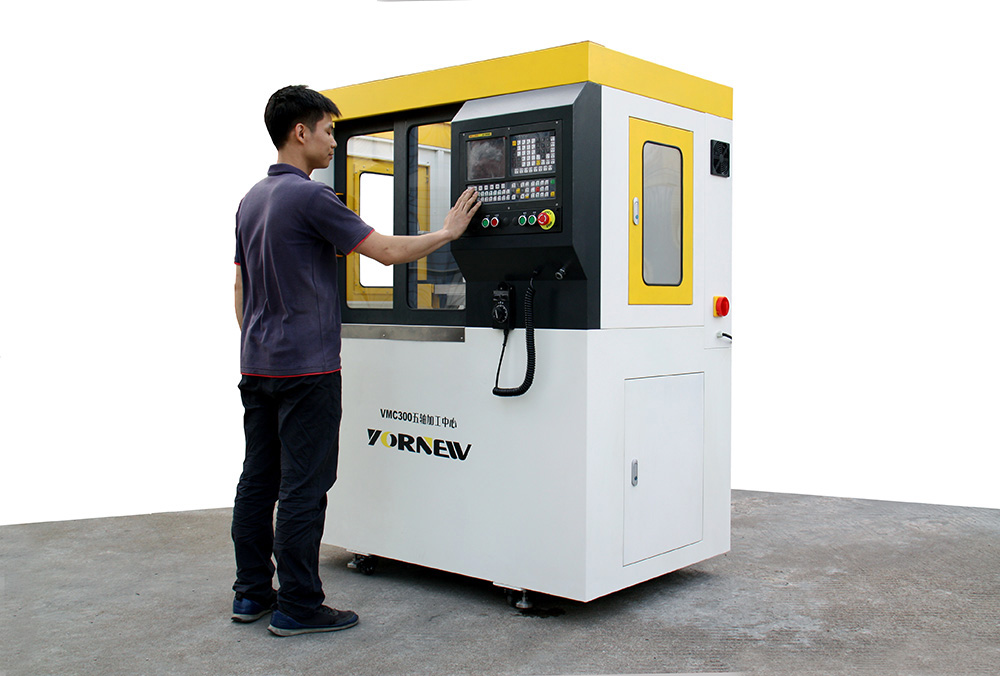

Small 5 Axis CNC Machine Center of maching Video
Small 5 Axis CNC Machine Center of maching Video
(1). High performance 5 axis CNC center machine controller.
(2). The standard spec includes electronic hand wheel.

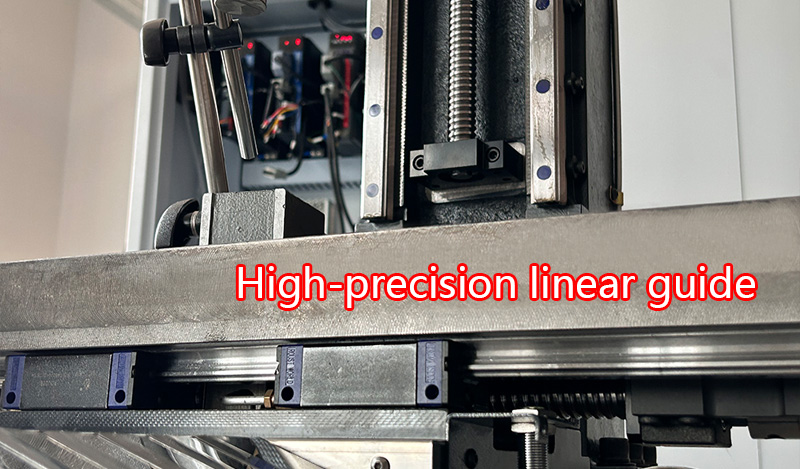

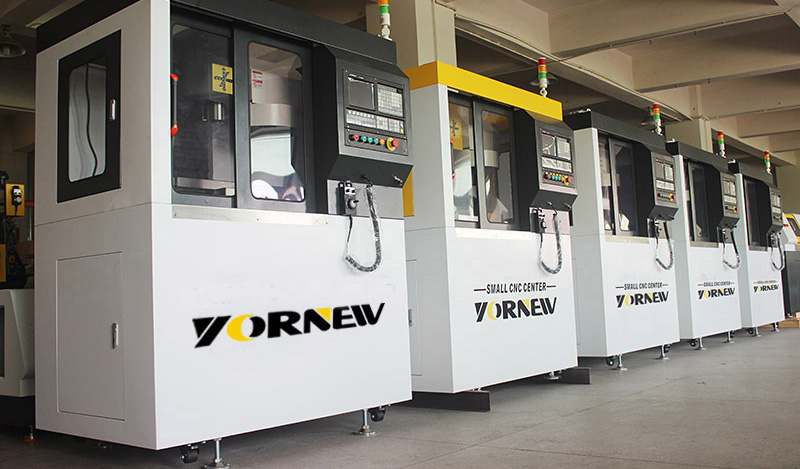

(3). High-precision linear guide,Selection of high -quality casting materials,more compact.

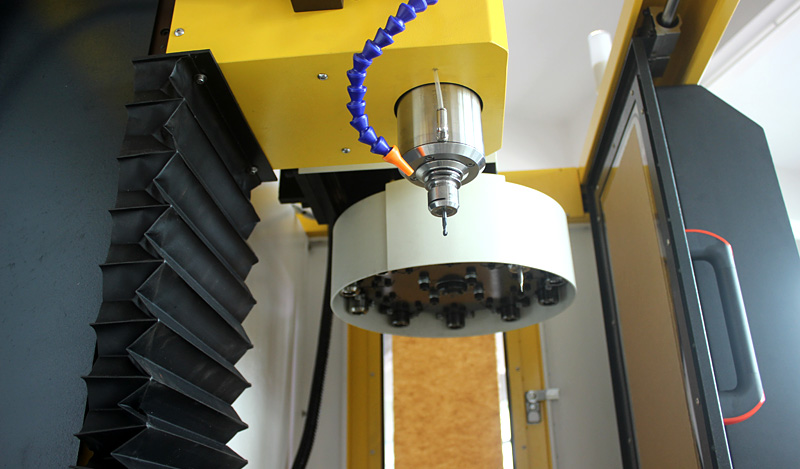

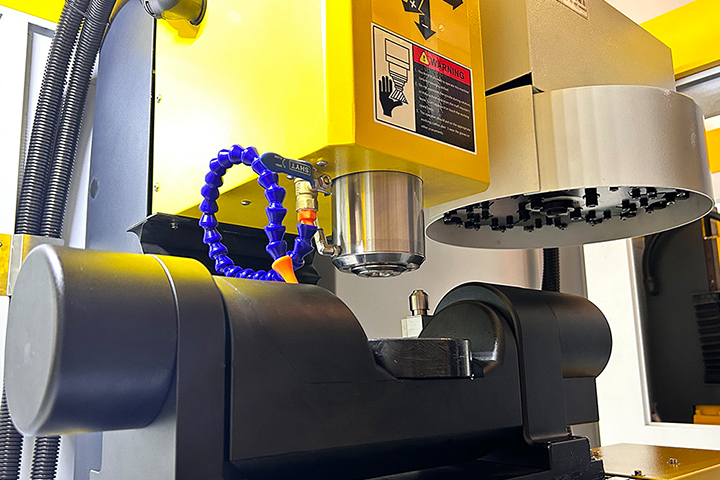

(4). 10 tools ATC.ISO20 spindle type, 24000rpm spindle speed.
(5). USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.
(6). Frequency conversion water cooling motor, low noise, high speed and good durability.
(7). Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.
(8). Macro variable, macro definition programming,realizing a variety of logical relations. Support macro program with parameters,convenient to the user programming.
(9). Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine , to exam if the preparation process is correct.
(10). Multi interface selection: support multi language interface display, automatic fault alarm. Processing information display,processing time, the number.
(11). Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.

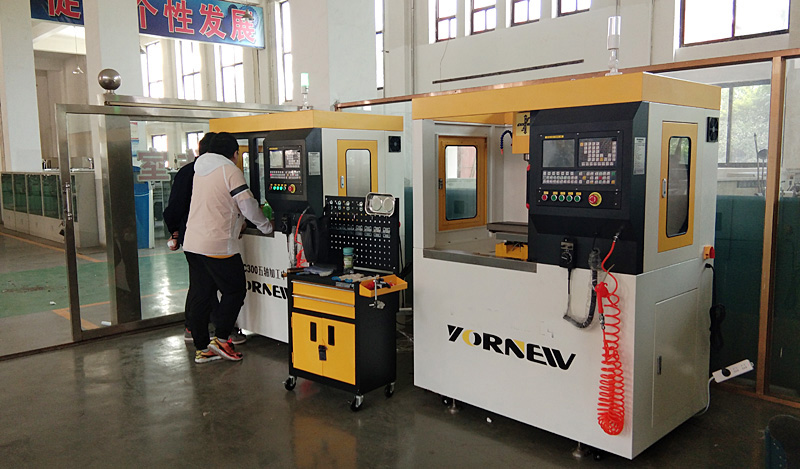

(12).Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters |
||
Positioning accuracy |
0.02mm |
|
Repeatability accuracy |
0.01mm |
|
X axis travel |
310mm |
|
Y axis travel |
180mm |
|
Z axis travel |
290mm |
|
Options 5th axis |
Backlash |
Zero Backlash |
Max Speed 4th axis |
30/R.P.M |
|
Max Speed 5th axis |
30/R.P.M |
|
Accuracy 4th axis |
±1 arc-min |
|
Accuracy 5th axis |
±1 arc-min |
|
Repeatability 4th axis |
20 arc-sec |
|
Repeatability 5th axis |
20 arc-sec |
|
Homing |
A axis |
|
Limits |
+C, -C |
|

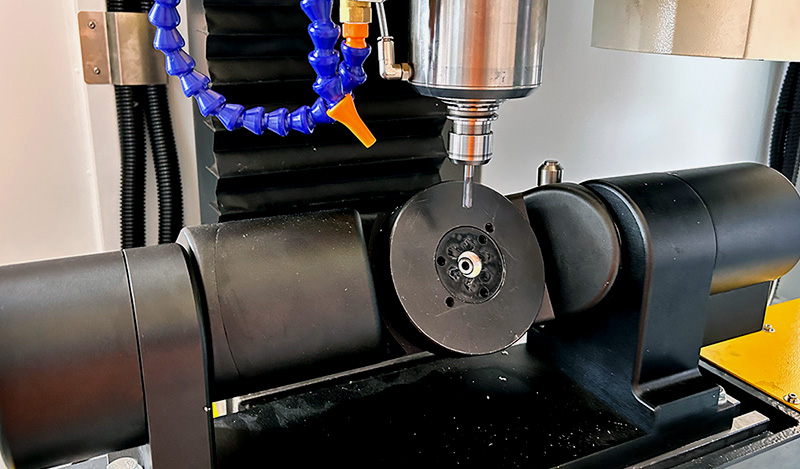

4th axis Travel |
A axis:+30° to -120°, |
|
5th axis Travel |
C axis:±infinity |
|
C axis Output Flange Diameter |
120mm |
|
Spindle taper |
ISO 20 |
|
Automatic tool change system(ATC)s |
10 Tools |
|
Pneumatic supply |
0.6 MPa |
|
Tool DIA.range |
1-13mm |
|
Standard Size Collet |
1-13mm |
|
Control system |
5 axis CNC center machine controller |
|
MPG hand wheel |
5 axis |
|
Spindle Power |
1.5kw |
|
Spindle speed |
100-24000rpm |
|
Motor Type |
XYZAC axis AC Servor |
|
Rapid movement in X /Y/Z Axis |
1-8000mm/min |
|
Feed rate in X/Y/Z Axis |
1-4000mm/min |
|
Power of X/Y/Z Axis |
AC Servo 750W |
|
Power of A/C Axis |
AC Servo 200W |
|
Transmission |
ball screw |
|
guide rail |
High-precision linear guide |
|
Table size |
550*180mm |
|
Number of T-slots |
3 |
|
Width of T-slot |
12mm |
|
Table structure |
Full cast iron |
|
Power |
230VAC/110VAC |
|
Weight(NW/GW) |
650/700kg |
|
Overall dimension |
1360*990*1800mm |
|
Packing size |
1400*1050*2000mm |
|
We Provide high performance manufacturing solutions at a price small manufacturers can afford.
